-23 °C / -13 °C Static gelato display case
$0.00

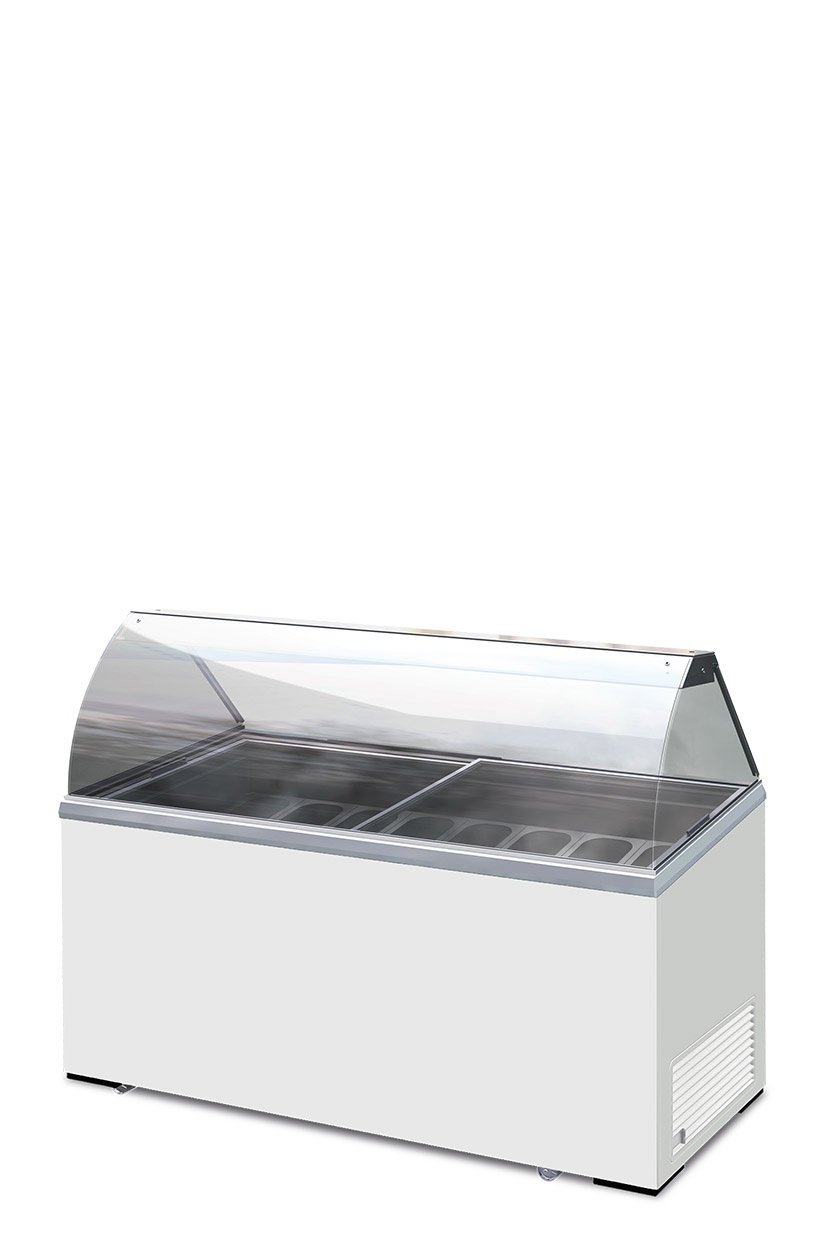

The ICE 8 is a high-capacity static ice cream display freezer, ideal for professional gelaterias, pastry shops, and cafés. Designed for both performance and presentation, it operates between -23 °C and -13 °C, maintaining optimal serving temperatures for ice cream and frozen desserts.
Featuring a four-sided glass structure, sliding glass lids, and LED lighting, the ICE 8 offers excellent visibility and accessibility. Built with a prepainted anticorrosion steel body and embossed aluminum interior, it ensures durability and consistent performance.
Key Features: Static cooling, LED lighting, manual defrost, mechanical thermostat, lock and key, and 4 castor wheels.
Capacity: 8 standard gelato pans (not included).
|
Dimensions mm |
ICE 7 |
ICE 8 |
|
External Dimensions ( WxDxH) |
1305 x 635 x 1240 |
1555 x 635 x 1240 |
|
Packaging Dimensions – refrigerated base (WxDxH ) |
1355 x 700 x 965 |
1610 x 700 x 965 |
|
Packaging Dimensions – Glass unit (WxDxH) |
1390 x 620 x 250 |
1650 x 620 x 250 |
|
Width |
1180 |
1430 |
|
Depth |
510 |
510 |
|
Height |
560 |
560 |
|
Min. Height |
330 |
330 |
|
Min. Width |
970 |
1210 |
|
Side Right Sticker |
625 x 490/379 |
625 x 490/379 |
|
Left Side Sticker |
625 x 750/638 |
625 x 750/638 |
|
Front Sticker |
1295 x 643 |
1545 x 643 |
|
Technical Features |
ICE 7 |
ICE 8 |
|
Temperature Range |
-23 °C / -13 °C |
-23 °C / -13 °C |
|
Climate Class |
4 |
4 |
|
Net-Gross Volume |
Lt. 337 / 381 |
Lt. 414 / 467 |
|
External Body Surface |
Pre-painted sheet metal with anti-corrosion treatment |
Pre-painted sheet metal with anti-corrosion treatment |
|
Internal Surface Inner Liner |
Embossed Aluminum |
Embossed Aluminum |
|
Thermometer |
Analogue |
Analogue |
|
Temperature regulator / Controller |
Mechanical |
Mechanical |
|
Noise level |
dB 52 |
dB 53 |
|
Insulation thickness |
60 mm |
60 mm |
|
Defrosting |
Manual |
Manual |
|
Lighting |
LED |
LED |
|
Lock and key |
Yes |
Yes |
|
Stainless steel baskets and dimensions (WxDxH ) |
Not included N° 7 – mm 165 x 360 x 100 – lt. 4.25 N° 7 – 165 x 360 x 120 mm – lt. 5 |
Not included N° 8 – mm 165 x 360 x 100 – lt. 4.25 N° 8 – 165 x 360 x 120 mm – lt. 5 |
|
Castors -Feet |
4 Wheels / 4 Castors |
4 Wheels / 4 Castors |
|
Net- Gross Weight |
105 / 115 kg |
120 / 131 kg |
|
Voltage |
V 220-240 |
V 220-240 |
|
Frequency |
Hz 50 |
Hz 50 |
|
Refrigerant |
R290 |
R290 |
|
Absorption |
W 299 |
W 293 |
|
Energy Consumption |
KwH/24H 4.3 |
KwH/24H 4.65 |
