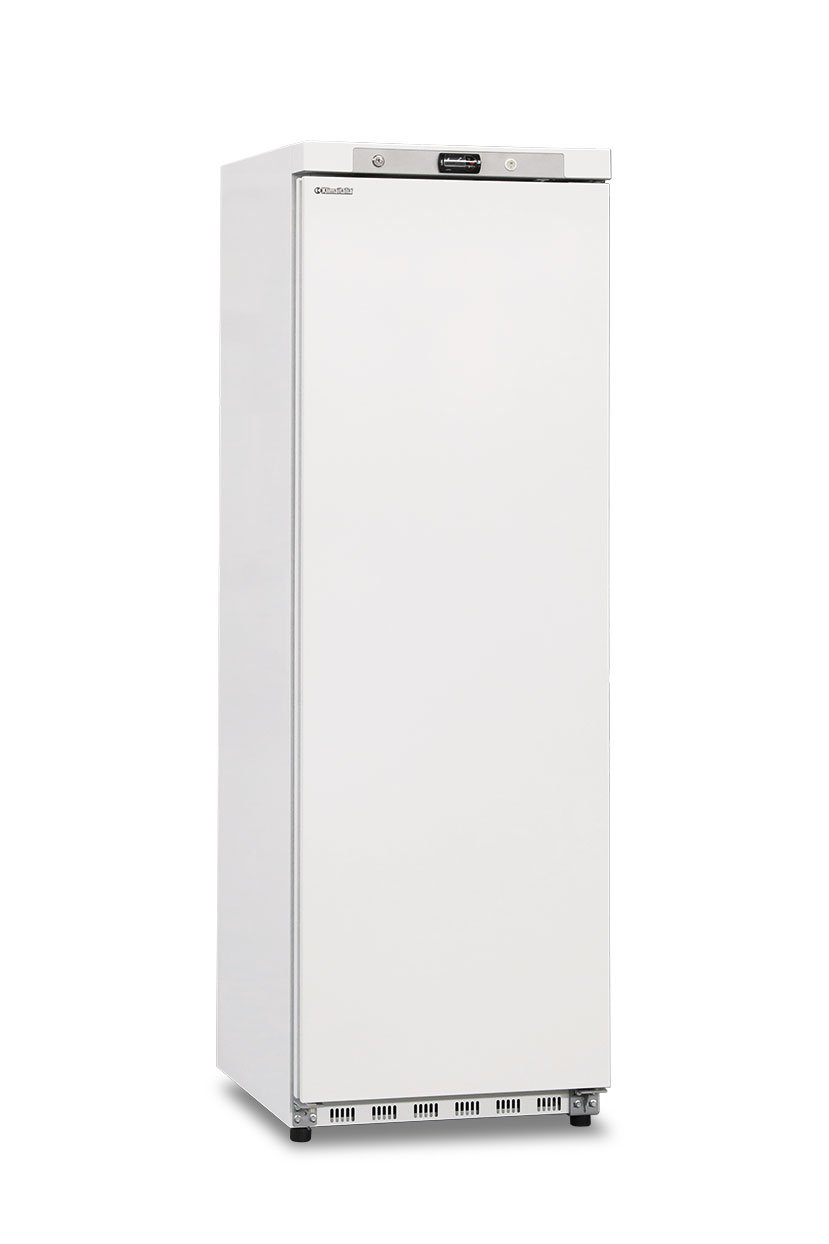

The GN 400 PS TN is a professional static-fan assisted refrigerator cabinet designed for bars, restaurants, and catering environments. Built with a pre-painted anti-corrosion steel exterior and ABS interior, it offers durability and easy maintenance. Operating between 0°C and +10°C, it ensures efficient and stable cooling. Features include automatic defrost, LED lighting, electronic thermostat, and a self-closing reversible door for maximum convenience.
| Dimensions mm | GN 400 PS TN | GN 400 PS BT | GN 600 PS TN | GN 600 PS BT |
| External Dimensions (WxDxH) | 600 x 625 x 1860 | 600 x 625 x 1860 | 775 x 760 x 1860 | 775 x 760 x 1860 |
| Packaging Dimensions (WxDxH) | 660 x 725 x 2000 | 660 x 725 x 2000 | 850 x 790 x 2000 | 850 x 790 x 2000 |
| Width | 457 | 457 | 632 | 632 |
| Depth | 474 | 474 | 610 | 610 |
| Height | 1600 | 1600 | 1600 | 1600 |
| Min. Depth | 264 | 264 | 400 | 400 |
| Min. Height | 1390 | 1390 | 1390 | 1390 |
| Technical Features | GN 400 PS TN | GN 400 PS BT | GN 600 PS TN | GN 600 PS BT |
| Temperature Range | 0 °C / +10 °C | -22 °C / -15 °C | 0 °C / +10 °C | -22 °C / -15 °C |
| Climate Class | 4 | 4 | 4 | 4 |
| Capacity | Lt. 400 | Lt. 400 | Lt. 600 | Lt. 600 |
| Body | Prepainted sheet with anticorrosion treatment | Prepainted sheet with anticorrosion treatment | Prepainted sheet with anticorrosion treatment | Prepainted sheet with anticorrosion treatment |
| Inner Liner | ABS | ABS | ABS | ABS |
| Thermostat | Electronic | Electronic | Electronic | Electronic |
| Noise level | dB 43,5 | dB 38,7 | dB 45,9 | dB 38,4 |
| Remote controller | Optional | Optional | Optional | Optional |
| Insulation thickness | mm 70 | mm 70 | mm 70 | mm 70 |
| Defrost | Automatic | Manual | Automatic | Manual |
| Lighting | 1 horizontal led | 1 horizontal led | 1 horizontal led | 1 horizontal led |
| Self closing door | Yes | Yes | Yes | Yes |
| Lock and key | Yes | Yes | Yes | Yes |
| R Reversible door | Yes | Yes | Yes | Yes |
| Shelves (WxD) | N° 5 – mm 476 x 436 + N° 1 – mm 477 x 207 | N° 6 – mm 476 x 436 | N° 5 – mm 652 x 573 + N° 1 – mm 652 x 347 | N° 6 – mm 652 x 573 |
| Castors-Feet | 2 Feet + 2 Castors | 2 Feet + 2 Castors | 2 Feet + 2 Castors | 2 Feet + 2 Castors |
| Door | ABS | ABS | ABS | ABS |
| Net-Gross Weight | Kg 72 / 85 | Kg 65 / 78 | Kg 94 / 110 | Kg 84 / 99 |
| Voltage | V 220-240 | V 220-240 | V 220-240 | V 220-240 |
| Frequency | Hz 50 | Hz 50 | Hz 50 | Hz 50 |
| Refrigerant | R600A | R290 | R600A | R290 |
| Absorption | W 176 | W 200 | W 194 | W 260 |
| Energy Consumption | KwH/24H 1,374 | KwH/24H 2,933 | KwH/24H 1,709 | KwH/24H 3,695 |
