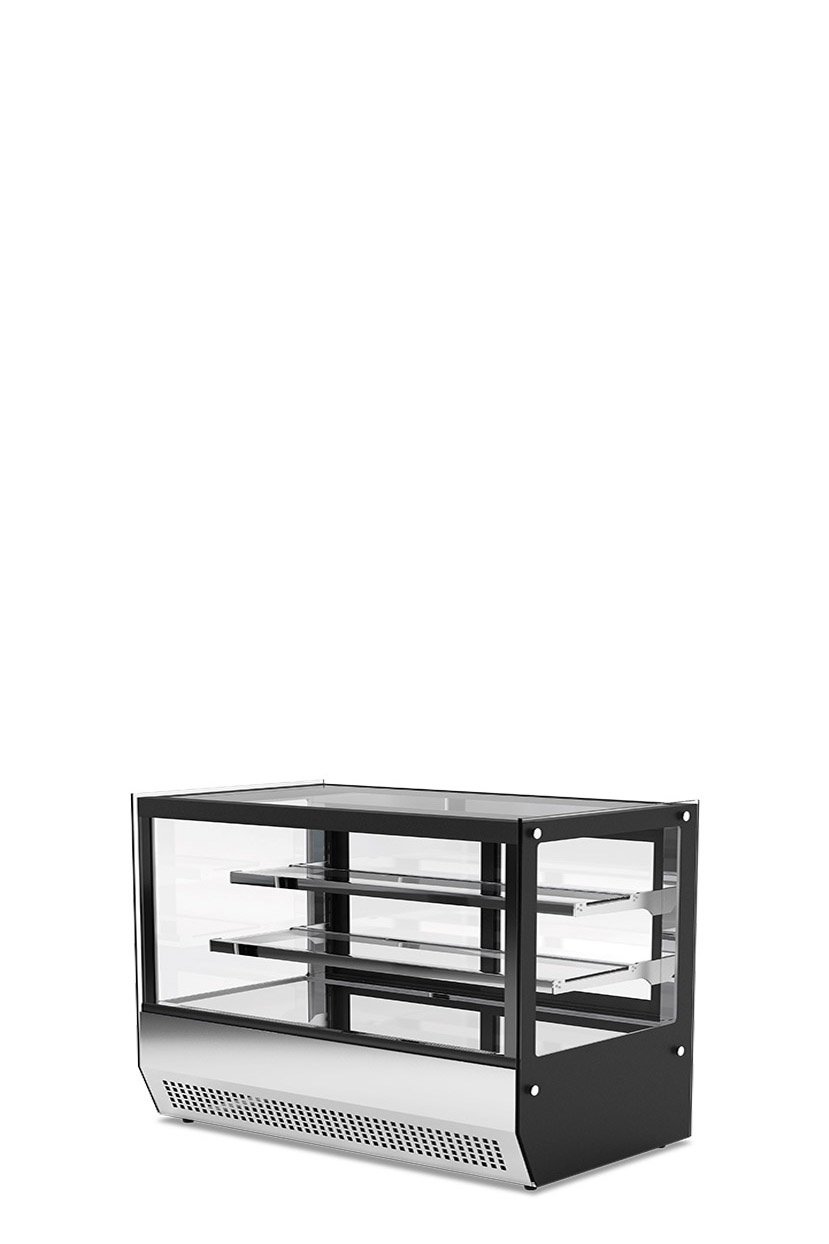

The DLX 90 is a stylish and professional ventilated countertop display, ideal for presenting pastries, desserts, and snacks with elegance and precision. Designed with premium materials and modern aesthetics, it features a four-sided glass enclosure, sliding rear doors, and a robust stainless-steel AISI 304 body, ensuring durability and easy maintenance.
With a temperature range of 0 °C to +18 °C, the DLX 90 keeps your products fresh and perfectly displayed under consistent, gentle ventilation. Its electronic thermostat allows precise control, while the automatic defrost system ensures smooth, worry-free operation.
Key Features:
Ventilated countertop pastry and snack display
Temperature range: 0 °C / +18 °C

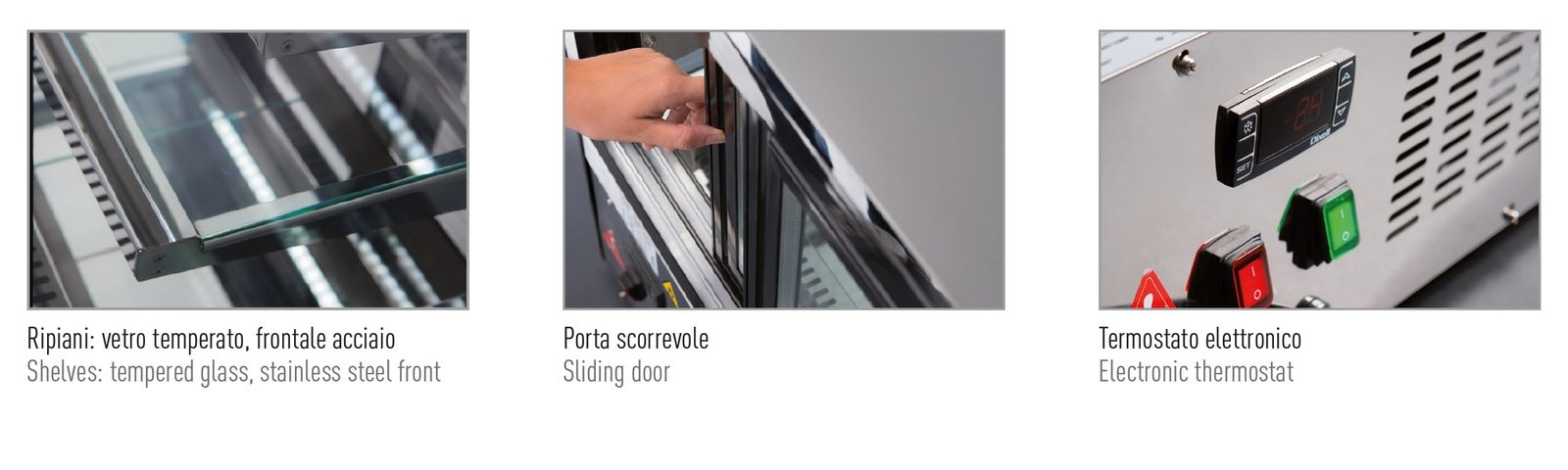

Four-sided glass structure with sliding rear doors
Stainless-steel AISI 304 interior and exterior
Two tempered glass shelves with stainless-steel front edge
LED lighting for clear product visibility
Electronic thermostat for accurate temperature control
Automatic compressor-stop defrost system
Optional Smart Link Wi-Fi remote monitoring
Low noise level (56 dB)
Elegant, practical, and energy-efficient — the DLX 90 is the perfect choice for pastry shops, cafés, and hotels looking for reliable refrigeration and premium product presentation.
|
Dimensions mm |
DLX 70 |
DLX 90 |
|
External Dimensions ( WxDxH) |
700 x 560 x 730 |
900 x 560 x 730 |
|
Packaging Dimensions ( WxDxH) |
785 x 645 x 850 |
985 x 645 x 850 |
|
Width |
670 |
870 |
|
Depth |
460 |
460 |
|
Height |
410 |
410 |
|
Technical Features |
DLX 70 |
DLX 90 |
|
Temperature Range |
0 °C / +18 °C |
0 °C / +18 °C |
|
Climate Class |
4 |
4 |
|
Net-Gross Volume |
Lt. 120 / 130 |
Lt.160 / 175 |
|
External Surface / Body |
AISI 304 steel / Stainless steel AISI 304 |
AISI 304 steel / Stainless steel AISI 304 |
|
Internal Surface |
AISI 304 steel / Stainless steel AISI 304 |
AISI 304 steel / Stainless steel AISI 304 |
|
Thermostat |
Electronic |
Electronic |
|
Smart Link WiFi | Remote Control |
Optional |
Optional |
|
Noise level |
dB 53 |
dB 56 |
|
Insulation thickness |
45 mm |
45 mm |
|
Defrosting Defrost |
Automatic compressor cycle |
Automatic compressor cycle |
|
Lighting |
1 horizontal LED |
1 horizontal LED |
|
Tempered glass shelves (WxD ) |
No. 1 mm 580 x 228 No. 1 mm 580 x 278 |
No. 1 mm 780 x 228 No. 1 mm 780 x 278 |
|
Castors -Feet |
4 Feet |
4 Feet |
|
Net- Gross Weight |
Kg 70 / 93 |
80 / 103 kg |
|
Voltage |
V 220-240 |
V 220-240 |
|
Frequency |
Hz 50 |
Hz 50 |
|
Refrigerant |
R600A |
R600A |
|
Absorption |
W 185 |
W 200 |
|
Energy Consumption |
KwH/24H 3.05 |
KwH/24H 3.72 |
