Dimensions mm

CW 160 G1TB

CW 160 G2TB

 External Dimensions (WxDxH)

595 x 700 x 1604

595 x 700 x 1604

 Packaging Dimensions (WxDxH)

645 x 770 x 1796

645 x 770 x 1796

 Width

500

500

 Depth

540

540

 Height

1425

1425

 Min. Depth

380

380

 Min. Height

1215

1215

 Side Sticker

648 x 1585

648 x 1585

 Glass Sticker

462 x 1340

462 x 1340

Technical Features

         CW 160 G1TB

CW          160          G2TB

 Temperature Range

+2 °C / +20 °C

+2 °C / +12 °C | +12 °C / +20 °C

Climate Class

N-ST

N-ST

 Net-Gross Volume

Lt. 358 / 375

Lt. 350 / 373

External Body Surface

Pre-painted sheet metal with anti-corrosion treatment

Pre-painted sheet metal with anti-corrosion treatment

Porta Door

Black full glass

Black full glass

Inner Liner

ABS

ABS

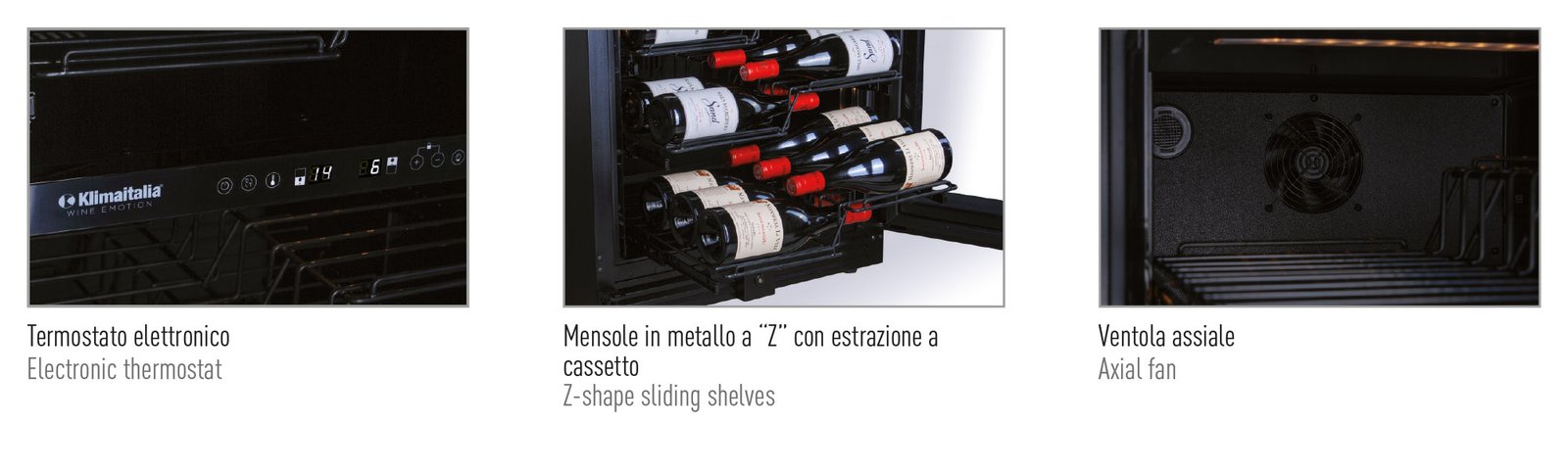

Thermostat Thermostat

 Electronic Touch screen

 Electronic Touch screen

Noise level

dB 38

dB 38

 Insulation thickness

mm 55

mm 55

Defrosting Defrost

Automatic compressor cycle

Automatic compressor cycle

Lighting​

LEDs: 2 vertical + 1 horizontal

LEDs: 2 vertical + 2 horizontal

Reversible door

Yes​

Yes​

Lock and key

Yes​

Yes​

Z -shape sliding shelves (WxD)

N° 9 – mm 452 x 535

N° 1 – mm 452 x 380

N° 8 – mm 452 x 535

N° 1 – mm 452 x 380

Castors -Feet

4 Feet

4 Feet

Net- Gross Weight

Kg 87 / 93

Kg 89 / 95

Voltage​

In 220

In 220

Frequency​

Hz 50

Hz 50

 Refrigerant

R600A

R600A

Absorption​

In 130

In 130

Energy Consumption

KwH/24H 0.395

KwH/24H 0.385
