-2 °C / +8 °C Ventilated refrigerated table, three doors con alzatina. Positive temperature
$0.00

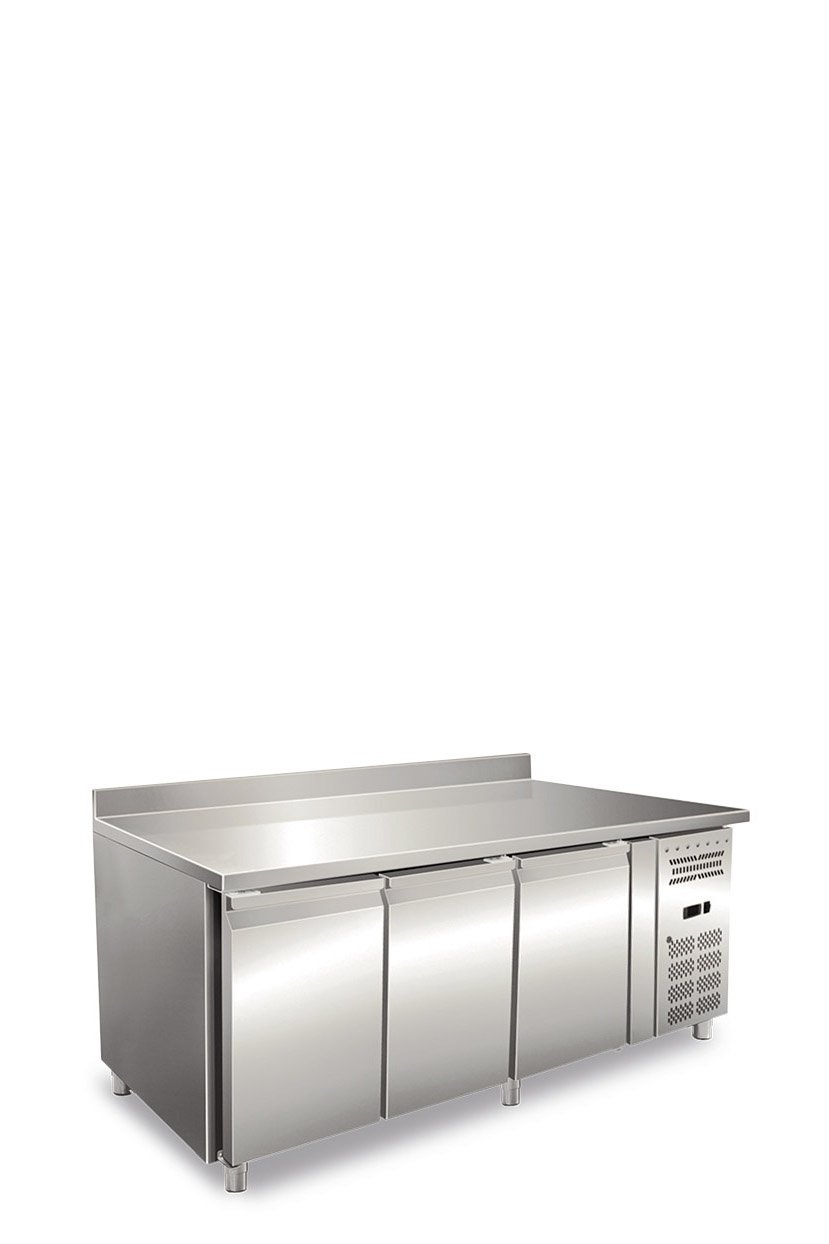

The CXF 3200 TN is a professional three-door ventilated refrigerated counter with rear splashback, ideal for restaurants, hotels, and catering kitchens. Built entirely from AISI 304 stainless steel, it ensures hygiene, strength, and long-lasting durability. Operating within a temperature range of -2°C to +8°C, it delivers uniform cooling and energy efficiency. Equipped with soft-closing self doors, electronic thermostat, and automatic electric defrost, it provides reliable performance for daily professional use.
| Dimensions mm | CXF 3200 TN | CXF 3200 TNG | CXF 3200 BT |
| External Dimensions (WxDxH) | 1795 x 700 x 960* | 1795 x 700 x 960* | 1795 x 700 x 960* |
| Packaging Dimensions (WxDxH) | 1825 x 730 x 1010 | 1825 x 730 x 1010 | 1825 x 730 x 1010 |
| Width | 1234 | 1234 | 1234 |
| Depth | 580 | 580 | 580 |
| Height | 560 | 560 | 560 |
| The total height of the units includes the feet adjusted at minimum height level | |||
| Technical Features | CXF 3200 TN | CXF 3200 TNG | CXF 3200 BT |
| Temperature Range | -2 °C / +8 °C | +2 °C / +8 °C | -22 °C / -18 °C |
| Climate Class | 5 | 4 | 4 |
| Net-Gross Volume | Lt. 291 / 358 | Lt. 302 / 358 | Lt. 281 / 358 |

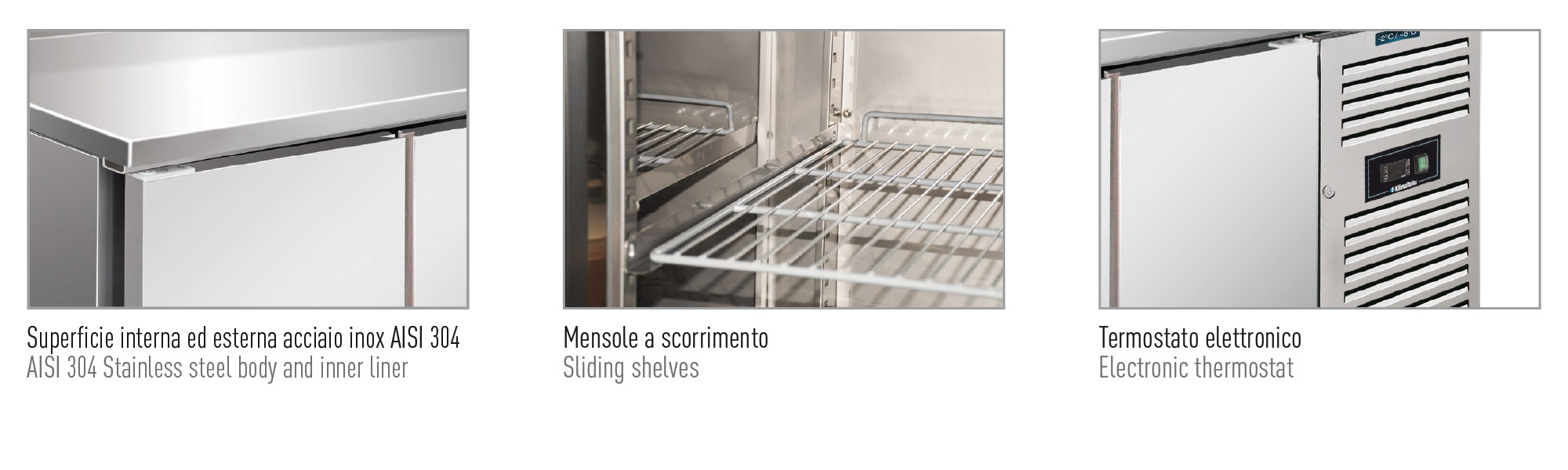

| Body | AISI 304 Stainless steel | AISI 304 Stainless steel | AISI 304 Stainless steel |
| Inner Liner | AISI 304 Stainless steel | AISI 304 Stainless steel | AISI 304 Stainless steel |
| Thermostat | Electronic | Electronic | Electronic |
| Noise level | dB 42 | dB 42 | dB 42 |
| Remote controller | Optional | Optional | Optional |
| Insulation thickness | mm 60 | mm 60 | m 60 |
| Defrost | Automatic with electric heater | Automatic with electric heater | Automatic with electric heater |
| Shelves (WxD) | N° 3 – mm 335 x 530 + N° 3 – mm 390 x 505 | N° 3 – mm 335 x 530 + N° 3 – mm 390 x 505 | N° 3 – mm 335 x 530 + N° 3 – mm 390 x 505 |
| Self closing door | Soft closing | Soft closing | Soft closing |
| Splashback Height | mm 110 | mm 110 | mm 110 |
| Castors-Feet | 4 Feet | 4 Feet | 4 Feet |
| Castors | Optional – h mm 140 | Optional – h mm 140 | Optional – h mm 140 |
| Net-Gross Weight | Kg 139 / 179 | Kg 144 / 161 | Kg 143 / 183 |
| Voltage | V 220-240 | V 220-240 | V 220-240 |
| Frequency | Hz 50 | Hz 50 | Hz 50 |
| Refrigerant | R600A | R600A | R290 |
| Absorption | W 300 | W 300 | W 570 |
| Energy Consumption | KwH/24H 2,25 | KwH/24H 3,126 | KwH/24H 8,11 |
