-20 °C / -10 °C Ventilated refrigerated table, three doors. Negative temperature
$0.00

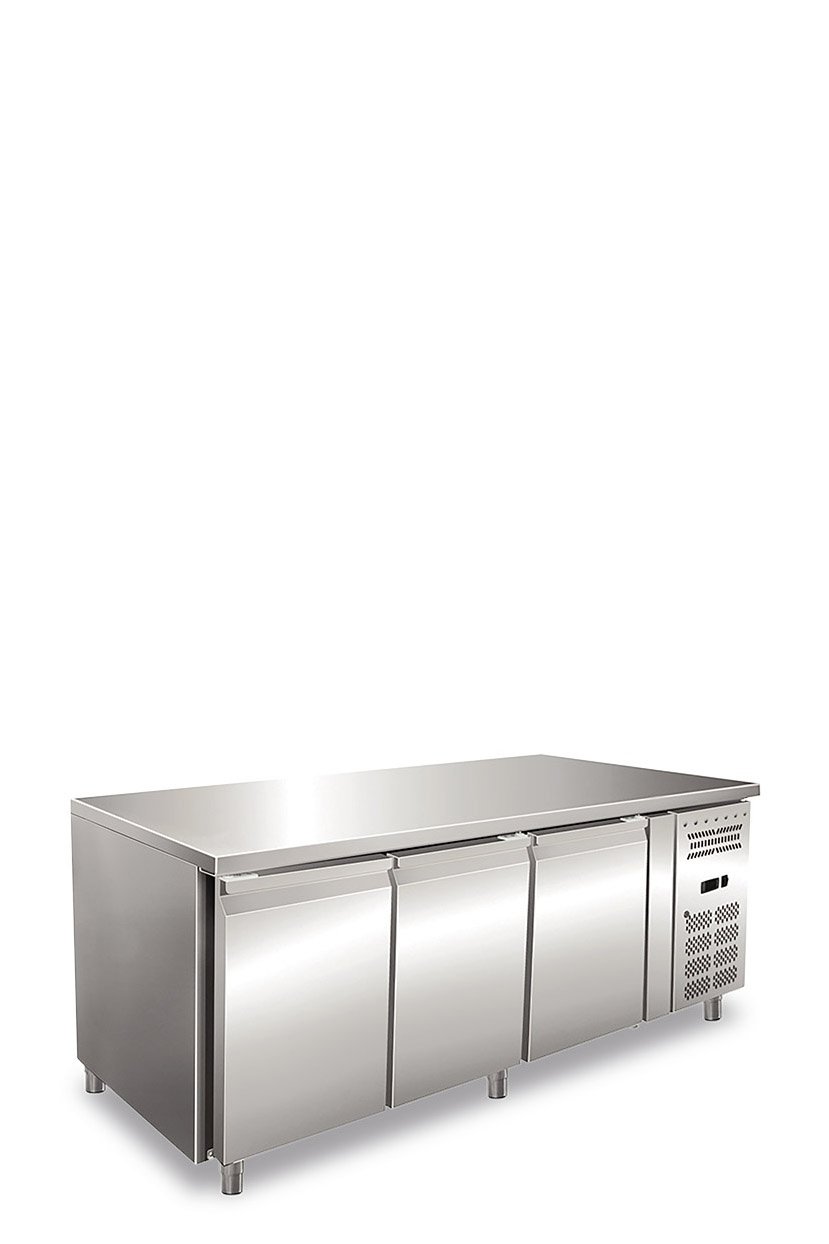

The CXF 3100 BT is a professional ventilated freezer counter with three stainless steel doors, perfect for restaurants, bars, and catering kitchens. Built from high-quality AISI 304 stainless steel, it guarantees durability, hygiene, and easy maintenance. This commercial-grade freezer maintains a stable temperature range from -22°C to -18°C, ensuring optimal preservation of frozen goods. Equipped with an electronic thermostat, soft-closing doors, and automatic defrost, it offers reliability and convenience for intensive daily use.
Key features:
Temperature range: -22°C to -18°C
Ventilated freezing system for uniform cooling

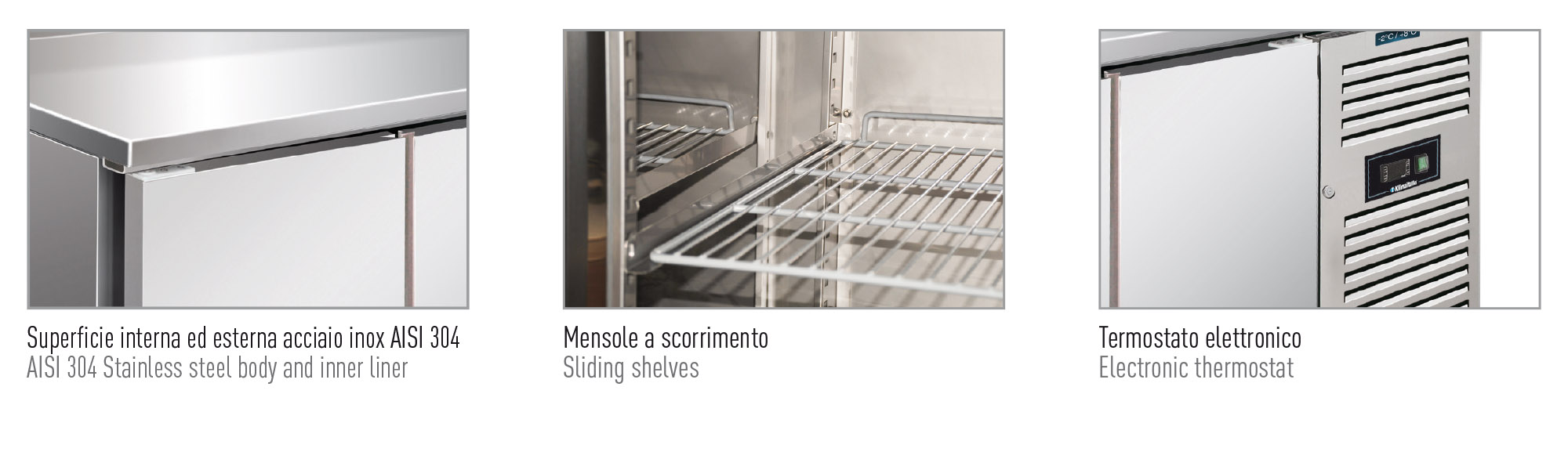

AISI 304 stainless steel body and inner liner
Soft-closing doors with self-closing function
Automatic electric defrost
Optional Smart Link WiFi for remote control
Energy consumption: 8.11 kWh/24h
Dimensions: 1795 × 700 × 860 mm
|
Dimensioni mm / Dimensions mm |
CXF 3100 TN |
CXF 3100 TNG |
CXF 3140 TN |
CXF 3100 BT |
|
Dimensioni Esterne (LxPxH) External Dimensions (WxDxH) |
1795 x 700 x 860* |
1795 x 700 x 860* |
1795 x 700 x 860* |
1795 x 700 x 860* |
|
Packaging Dimensions ( WxDxH) |
1825 x 730 x 910 |
1825 x 730 x 910 |
1825 x 730 x 910 |
1825 x 730 x 910 |
|
A – Width |
1234 |
1234 |
1234 |
1234 |
|
B – Depth |
580 |
580 |
580 |
580 |
|
C – Height |
560 |
560 |
560 |
560 |
|
*The total height of the units includes the feet adjusted at minimum height level |
||||
|
Technical Features |
CXF 3100 TN |
CXF 3100 TNG |
CXF 3110 / 3130 TN |
CXF 3140 TN |
CXF 3100 BT |
|
Temperatura / Temperature Range |
-2 °C / +8 °C |
+2 °C / +8 °C |
-2 °C / +8 °C |
-2 °C / +8 °C |
-22 °C / -18 °C |
|
Climate Class |
5 |
4 |
4 |
4 |
4 |
|
Volume Netto-Lordo / Net-Gross Volume |
Lt. 291 / 358 |
Lt. 302 / 358 |
Lt. 242 / 358 |
Lt. 194 / 358 |
Lt. 281 / 358 |
|
External Surface / Body |
Acciaio Inox AISI 304 AISI 304 Stainless steel |
Acciaio Inox AISI 304 AISI 304 Stainless steel |
Acciaio Inox AISI 304 AISI 304 Stainless steel |
Acciaio Inox AISI 304 AISI 304 Stainless steel |
Acciaio Inox AISI 304 AISI 304 Stainless steel |
|
Porta / Door |
– |
Glass |
– |
– |
– |
|
Inner Liner |
Acciaio Inox AISI 304 AISI 304 Stainless steel |
Acciaio Inox AISI 304 AISI 304 Stainless steel |
Acciaio Inox AISI 304 AISI 304 Stainless steel |
Acciaio Inox AISI 304 AISI 304 Stainless steel |
Acciaio Inox AISI 304 AISI 304 Stainless steel |
|
Thermostat |
Electronic |
Electronic |
Electronic |
Electronic |
Electronic |
|
Noise level |
dB 42 |
dB 42 |
dB 42 |
dB 42 |
dB 42 |
|
Smart Link WiFi Remote control / Remote controller |
Optional |
Optional |
Optional |
Optional |
Optional |
|
Spessore isolamento / Insulation thickness |
mm 60 |
mm 60 |
mm 60 |
mm 60 |
m 60 |
|
Defrosting Defrost |
Automatic with electric heater |
Automatic with electric heater |
Automatic with electric heater |
Automatic with electric heater |
Automatic with electric heater |
|
Mensole (LxP) / Shelves (WxD) |
N° 3 – mm 335 x 530 + N° 3 – mm 390 x 505 |
N° 3 – mm 335 x 530 + N° 3 – mm 390 x 505 |
N° 2 – mm 335 x 530 + N° 2 – mm 390 x 505 |
N° 1 – mm 335 x 530 + N° 1 – mm 390 x 505 |
N° 3 – mm 335 x 530 + N° 3 – mm 390 x 505 |
|
Lighting |
– |
Led 3,6 W |
– |
– |
– |
|
Self- closing door |
Soft closing |
Soft closing |
Soft closing |
Soft closing |
Soft closing |
|
Castors -Feet |
4 Piedi / 6 Feet h mm 110/170 |
4 Piedi / 6 Feet h mm 110/170 |
4 Piedi / 6 Feet h mm 110/170 |
4 Piedi / 6 Feet h mm 110/170 |
4 Piedi / 6 Feet h mm 110/170 |
|
Wheels / Castors |
Optional – h mm 140 |
Optional – h mm 140 |
Optional – h mm 140 |
Optional – h mm 140 |
Optional – h mm 140 |
|
Net- Gross Weight |
Kg 134 / 151 |
Kg 134 / 151 |
Kg 144 / 161 |
Kg 154 / 171 |
Kg 136 / 154 |
|
Voltage |
At 220-240 |
At 220-240 |
At 220-240 |
At 220-240 |
At 220-240 |
|
Frequency |
Hz 50 |
Hz 50 |
Hz 50 |
Hz 50 |
Hz 50 |
|
Refrigerant / Refrigerant |
R600A |
R600A |
R600A |
R600A |
R290 |
|
Absorption |
In 300 |
In 300 |
In 300 |
In 300 |
In 570 |
|
Energy Consumption |
KwH/24H 2.25 |
KwH/24H 3,126 |
KwH/24H 2.25 |
KwH/24H 2,18 |
KwH/24H 8,11 |
