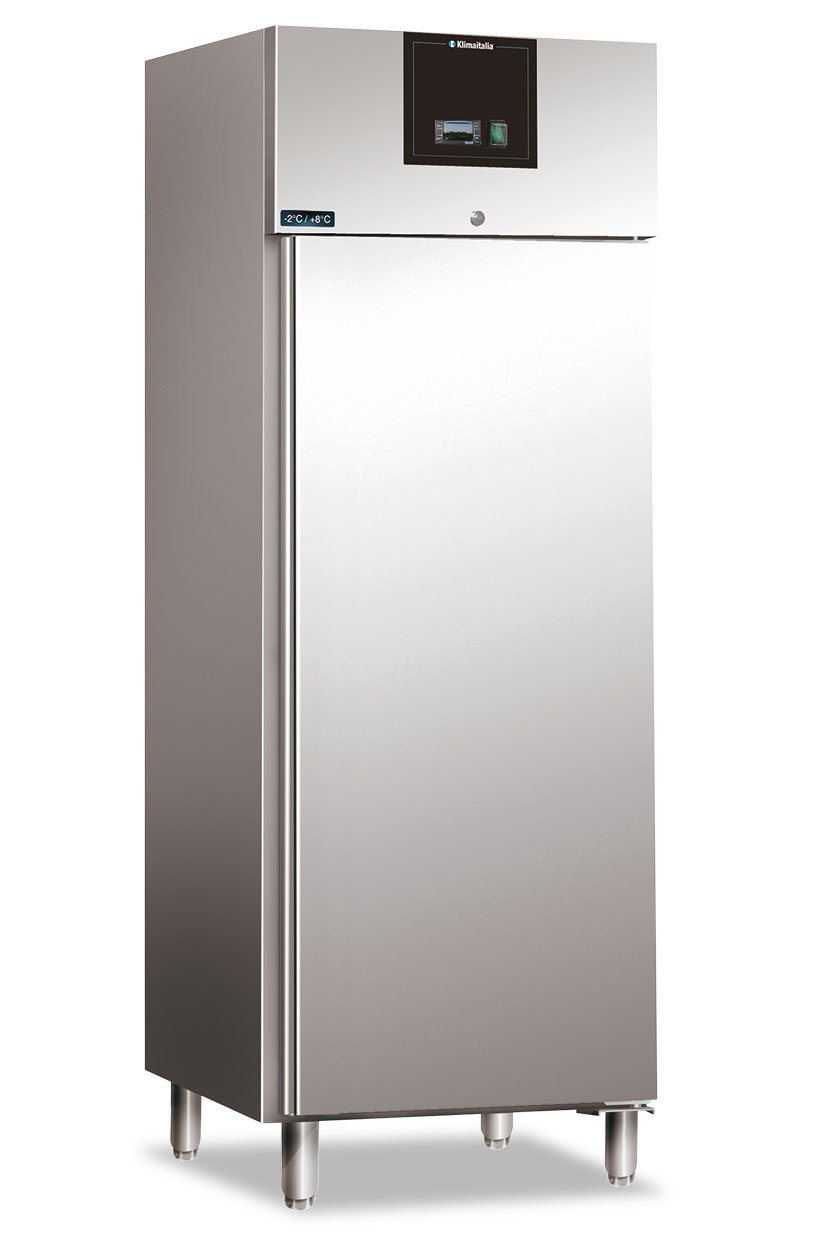

The AXF 700 TN is a professional ventilated stainless steel refrigerator cabinet designed for commercial kitchens and catering environments. Built from AISI 304 stainless steel, it ensures hygiene, durability, and reliable performance. With a temperature range of -2°C to +8°C, it provides efficient and stable cooling for food storage. Features include an electronic thermostat, soft-closing self door, LED lighting, and automatic defrost for easy maintenance.
Key features:
Temperature range: -2°C to +8°C
Capacity: 427 L
AISI 304 stainless steel body and interior
Ventilated ceiling cooling system
Automatic electric defrost
Soft-closing door with lock and key
LED lighting, Smart Link WiFi optional
Energy consumption: 1.54 kWh/24h
Dimensions: 740 × 830 × 2010 mm
| Dimensions mm | AXF 700 TN | AXF 700 TNG | AXF 700 BT | AXF 700 BTG |
| External Dimensions (WxDxH) | 740 x 830 x 2010* | 740 x 830 x 2010* | 740 x 830 x 2010* | 680 x 845 x 2000* |
| Packaging Dimensions (WxDxH) | 765 x 855 x 2070 | 765 x 855 x 2070 | 765 x 855 x 2070 | 710 x 875 x 2050 |
| Width | 624 | 624 | 624 | 560 |
| Depth | 700 | 700 | 700 | 680 |
| Height | 1410 | 1410 | 1410 | 1380 |
| The total height of the units includes the feet adjusted at minimum height level | ||||
| Technical Features | AXF 700 TN | AXF 700 TNG | AXF 700 BT | AXF 700 BTG |
| Temperature Range | -2 °C / +8 °C | +2 °C / +8 °C | -22 °C / -18 °C | -22 °C / -18 °C |
| Climate Class | 5 | 4 | 4 | 4 |
| Net-Gross Volume | Lt. 427 / 685 | Lt. 416 / 685 | Lt. 427 / 685 | Lt. 339 / 537 |
| Body | AISI 304 Stainless steel | AISI 304 Stainless steel | ||
| Door | – | Glass | – | Glass |
| Inner Liner | AISI 304 Stainless steel | AISI 304 Stainless steel | ||

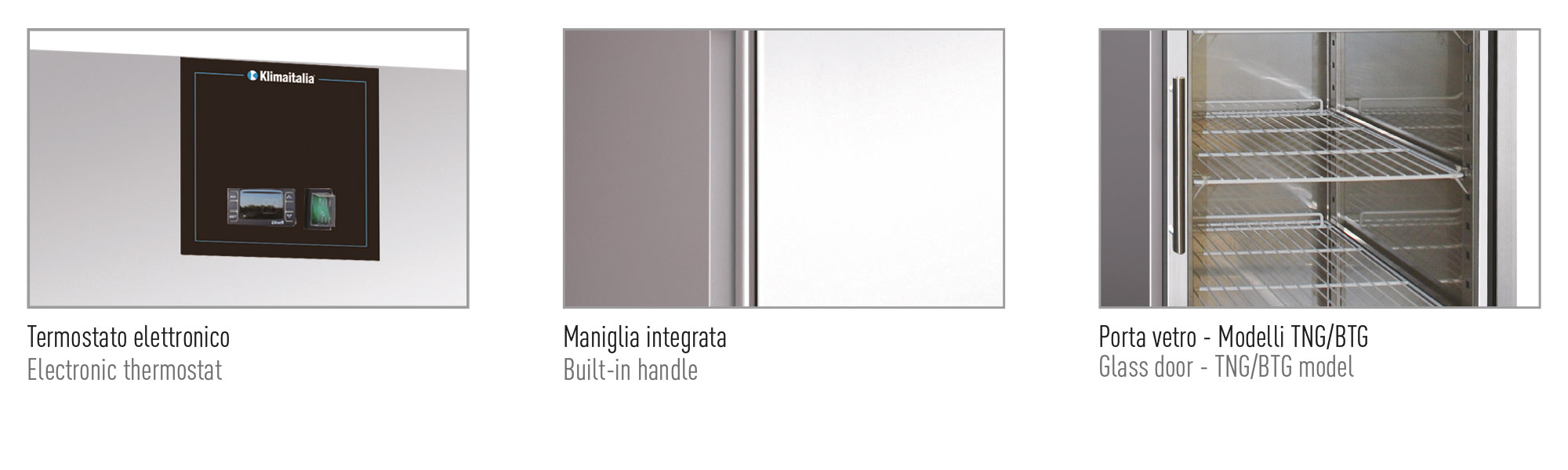

| Thermostat | Electronic | Electronic | ||
| Noise level | dB 52 | dB 52 | dB 48 | dB 52 |
| Remote controller | Optional | Optional | Optional | Optional |
| Insulation thickness | mm 60 | mm 60 | mm 60 | mm 60 |
| Defrost | Automatic with electric heater | Automatic with electric heater | ||
| Cooling system | Ceiling evaporator | Ceiling evaporator | ||
| Lighting | Led 220 / 0,6 W | Led 24V / 2,7 W | Led 220 / 0,6 W | Led 24V / 2,7 W |
| Self closing door | Soft closing | Soft closing | ||
| Lock and key | Yes | Yes | Yes | Yes |
| Reversible door | Yes | – | Yes | – |
| Shelves (WxD) | N° 3 – mm 534 x 650 + N° 1 – mm 536 x 650 | N° 3 – mm 534 x 650 + N° 1 – mm 536 x 650 | N° 3 – mm 534 x 640 + N° 1 – mm 525 x 630 | |
| Feet | 4 Feet | 4 Feet | ||
| Castors | Optional – h mm 140 | Optional – h mm 140 | ||
| Net-Gross Weight | Kg 134 / 143 | Kg 138 / 147 | Kg 138 / 147 | Kg 148 / 158 |
| Voltage | V 220-240 | V 220-240 | V 220-240 | V 220-240 |
| Frequency | Hz 50 | Hz 50 | Hz 50 | Hz 50 |
| Refrigerant | R600 / R290 | R290 | R290 | R290 |
| Absorption | W 250 | W 315 | W 500 | W 610 |
| Energy Consumption | KwH/24H 1,536 | KwH/24H 2,596 | KwH/24H 6,57 | KwH/24H 8,279 |
