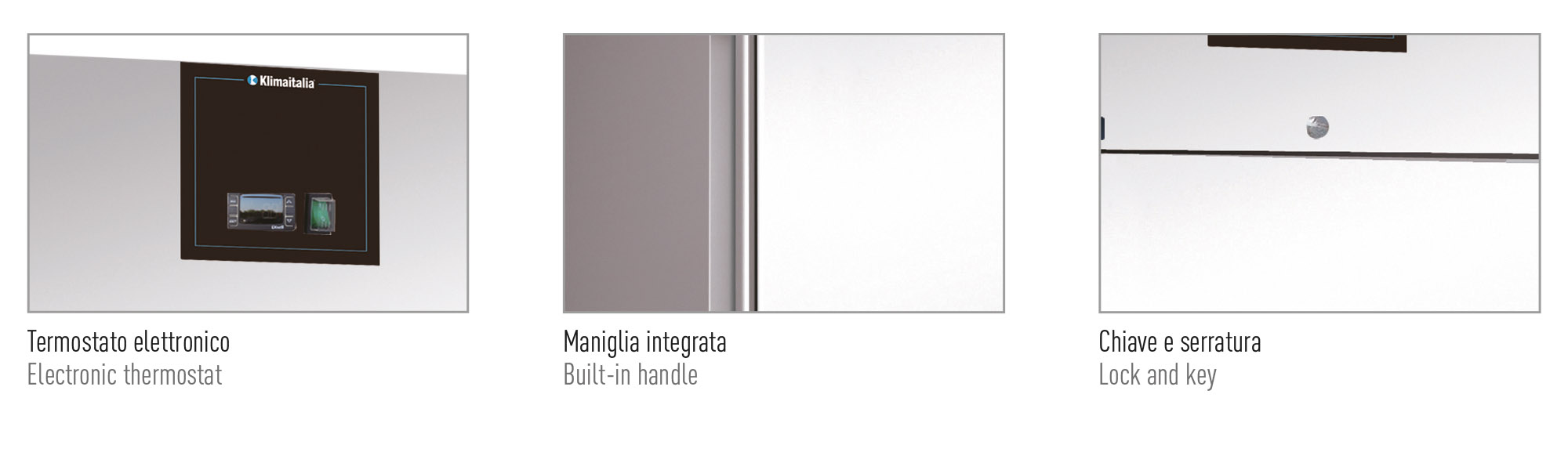

The AXF 350 TN is a professional ventilated stainless steel refrigerator cabinet, ideal for compact commercial kitchens, bars, and catering environments. Built from AISI 304 stainless steel, it offers hygiene, durability, and efficient performance. Operating between -2°C and +8°C, it ensures precise temperature control and uniform cooling. Features include an electronic thermostat, soft-closing self door, automatic defrost, and optional Smart Link WiFi for remote management.
| Dimensions mm | AXF 350 TN | AXF 350 BT |
| External Dimensions (WxDxH) | 484 x 735 x 2100* | 484 x 735 x 2100* |
| Packaging Dimensions (WxDxH) | 515 x 765 x 2260 | 515 x 765 x 2260 |
| Width | 364 | 364 |
| Depth | 570 | 570 |
| Height | 1523 | 1523 |
| The total height of the units includes the feet adjusted at minimum height level | ||
| Technical Features | AXF 350 TN | AXF 350 BT |
| Temperature Range | -2 °C / +8 °C | -22 °C / -18 °C |
| Climate Class | 5 | 5 |
| Net-Gross Volume | Lt. 228 / 292 | Lt. 228 / 292 |
| Body | AISI 304 Stainless steel | AISI 304 Stainless steel |
| Inner Liner | AISI 304 Stainless steel | AISI 304 Stainless steel |
| Thermostat | Electronic | Electronic |
| Noise level | dB 45 | dB 48 |
| Remote controller | Optional | Optional |
| Insulation thickness | mm 60 | mm 60 |
| Defrost | Automatic with electric heater | Automatic with electric heater |
| Cooling system | Ceiling evaporator | Ceiling evaporator |
| Self closing door | Soft closing | Soft closing |
| Lock and key | Yes | Yes |
| Reversible door | Yes | Yes |
| Shelves (WxD) | N° 3 – mm 335 x 530 | N° 3 – mm 335 x 530 |
| Castors-Feet | 4 Feet | 4 Feet |
| Castors | Optional – h mm 140 | Optional – h mm 140 |
| Net-Gross Weight | Kg 110 / 123 | Kg 110 / 123 |
| Voltage | V 220-240 | V 220-240 |
| Frequency | Hz 50 | Hz 50 |
| Refrigerant | R600A | R290 |
| Absorption | W 250 | W 380 |
| Energy Consumption | KwH/24H 0,903 | KwH/24H 3,700 |
