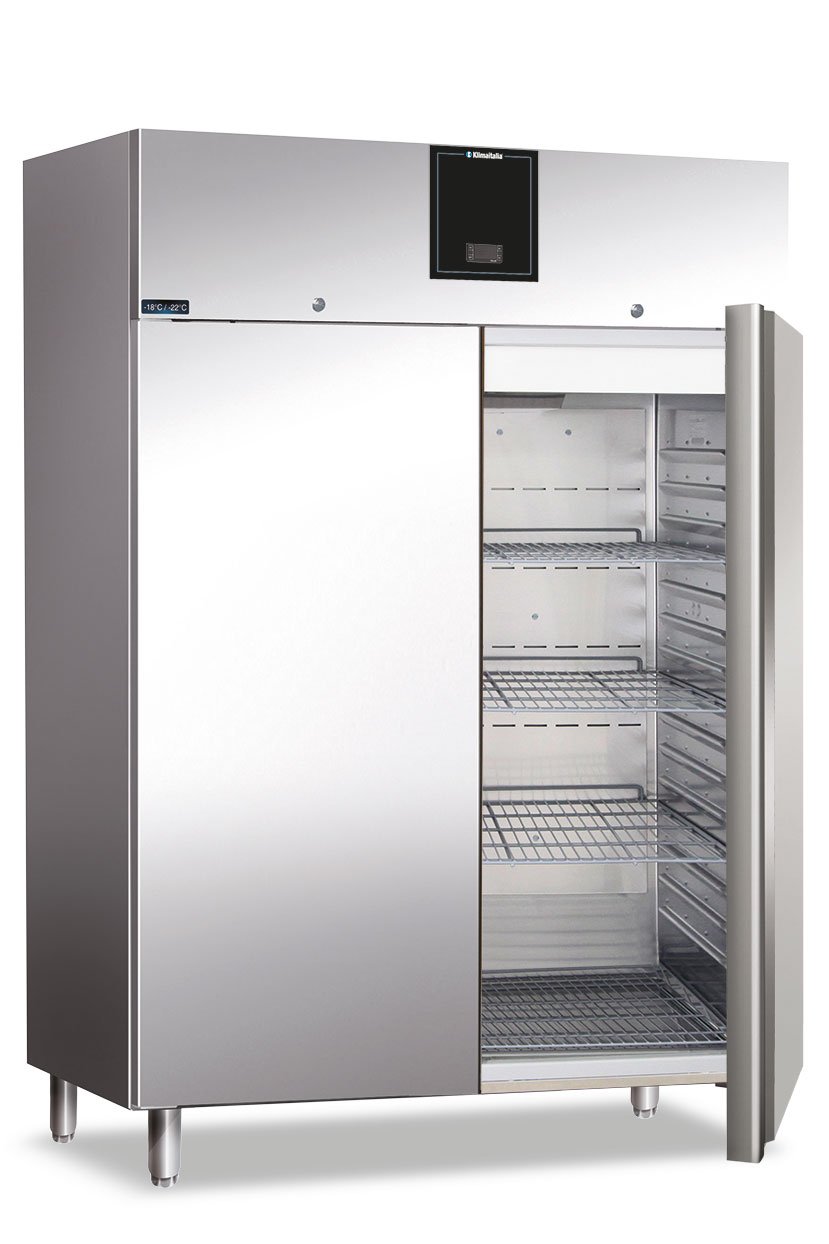

The AXF 1600 BT is a professional double-door ventilated freezer cabinet made from AISI 304 stainless steel, ideal for restaurants, hotels, and catering kitchens. Operating within a temperature range of -22°C to -18°C, it ensures reliable deep-freeze storage with excellent energy efficiency. Equipped with an electronic thermostat, soft-closing doors, LED lighting, and automatic defrost, it delivers top performance and long-lasting durability.
| Dimensions mm | AXF 1600 TN | AXF 1600 BT |
| External Dimensions (WxDxH) | 1420 x 875 x 2090* | 1420 x 875 x 2090* |
| Packaging Dimensions (WxDxH) | 1445 x 905 x 2150 | 1445 x 905 x 2150 |
| Width | 1240 | 1240 |
| Depth | 700 | 700 |
| Height | 1501 | 1501 |
| The total height of the units includes the feet adjusted at minimum height level | ||
| Technical Features | AXF 1600 TN | AXF 1600 BT |
| Temperature Range | -2 °C / +8 °C | -22 °C / -18 °C |
| Climate Class | 5 | 5 |
| Net-Gross Volume | Lt. 940 / 1300 | Lt. 940 / 1300 |

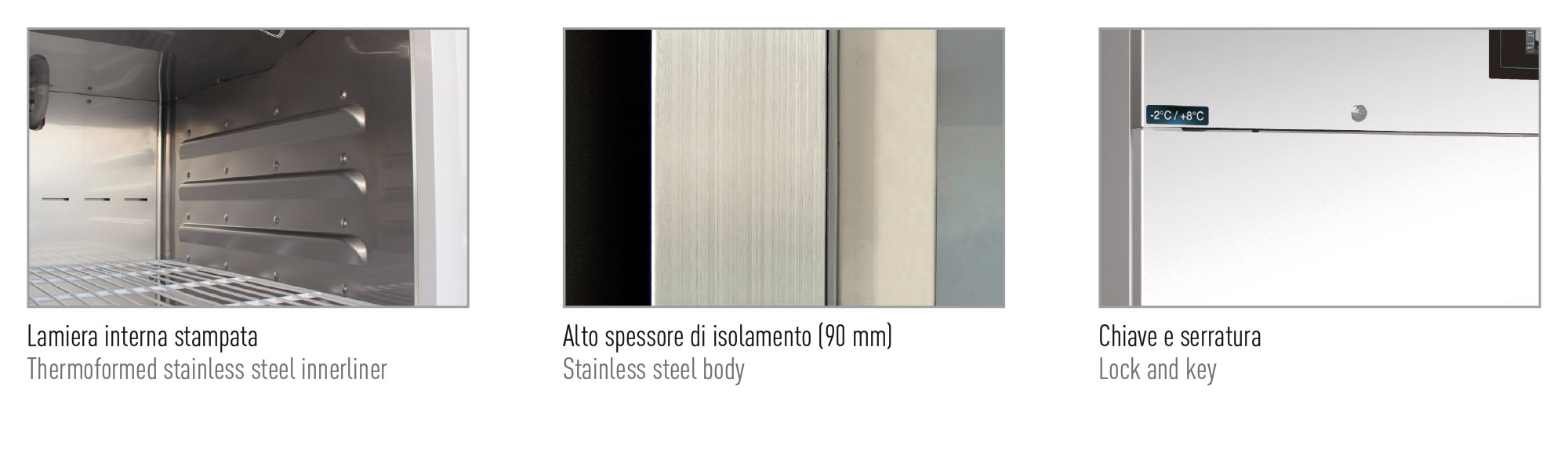

| Body | AISI 304 Stainless steel | AISI 304 Stainless steel |
| Inner Liner | AISI 304 Stainless steel | AISI 304 Stainless steel |
| Thermostat | Electronic | Electronic |
| Noise level | dB 38 | dB 38 |
| Remote controller | Optional | Optional |
| Insulation thickness | mm 90 | mm 90 |
| Defrost | Automatic with electric heater | Automatic with electric heater |
| Cooling system | Ceiling evaporator | Ceiling evaporator |
| Lighting | Led 12V/2.4W | Led 12V/2.4W |
| Self closing door | Soft closing | Soft closing |
| Lock and key | Yes | Yes |
| Shelves (WxD) | N° 6 – mm 530 x 650 + N°2 – mm 538 x 630 | N° 6 – mm 530 x 650 + N°2 – mm 538 x 630 |
| Castors-Feet | 4 Feet | 4 Feet |
| Castors | Optional – h mm 140 | Optional – h mm 140 |
| Net-Gross Weight | Kg 198 / 213 | Kg 208 / 226 |
| Voltage | V 220-240 | V 220-240 |
| Frequency | Hz 50 | Hz 50 |
| Refrigerant | R600A | R290 |
| Absorption | W 360 | W 480 |
| Energy Consumption | KwH/24H 1,31 | KwH/24H 4,34 |
