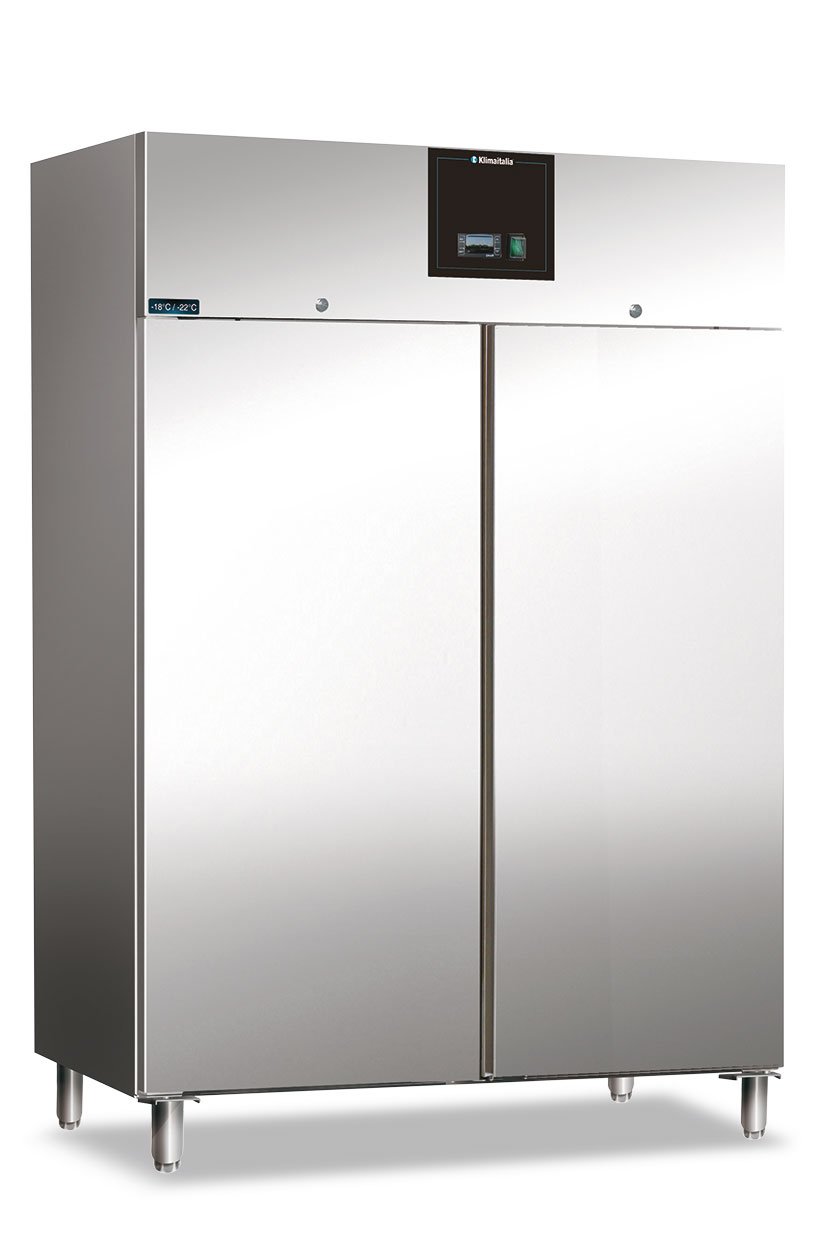

The AXF 1500 BT is a professional double-door ventilated freezer cabinet built from AISI 304 stainless steel, ideal for restaurants, hotels, and catering kitchens. It operates at -22°C to -18°C, ensuring reliable deep-freeze performance for large storage needs. Featuring an electronic thermostat, soft-closing doors, LED lighting, and automatic defrost, it combines energy efficiency with long-term durability.
| Dimensions mm | AXF 710 TN | AXF 710 BT |
| External Dimensions (WxDxH) | 680 x 875 x 2090* | 680 x 875 x 2090* |
| Packaging Dimensions (WxDxH) | 705 x 905 x 2150 | 705 x 905 x 2150 |
| Width | 533 | 533 |
| Depth | 700 | 700 |
| Height | 1501 | 1501 |
| The total height of the units includes the feet adjusted at minimum height level | ||
| Technical Features | AXF 710 TN | AXF 710 BT |
| Temperature Range | -2 °C / +8 °C | -22 °C / -18 °C |
| Climate Class | 5 | 5 |
| Net-Gross Volume | Lt. 428 / 514 | Lt. 428 / 514 |
| Body | AISI 304 Stainless steel | AISI 304 Stainless steel |
| Inner Liner | AISI 304 Stainless steel | AISI 304 Stainless steel |

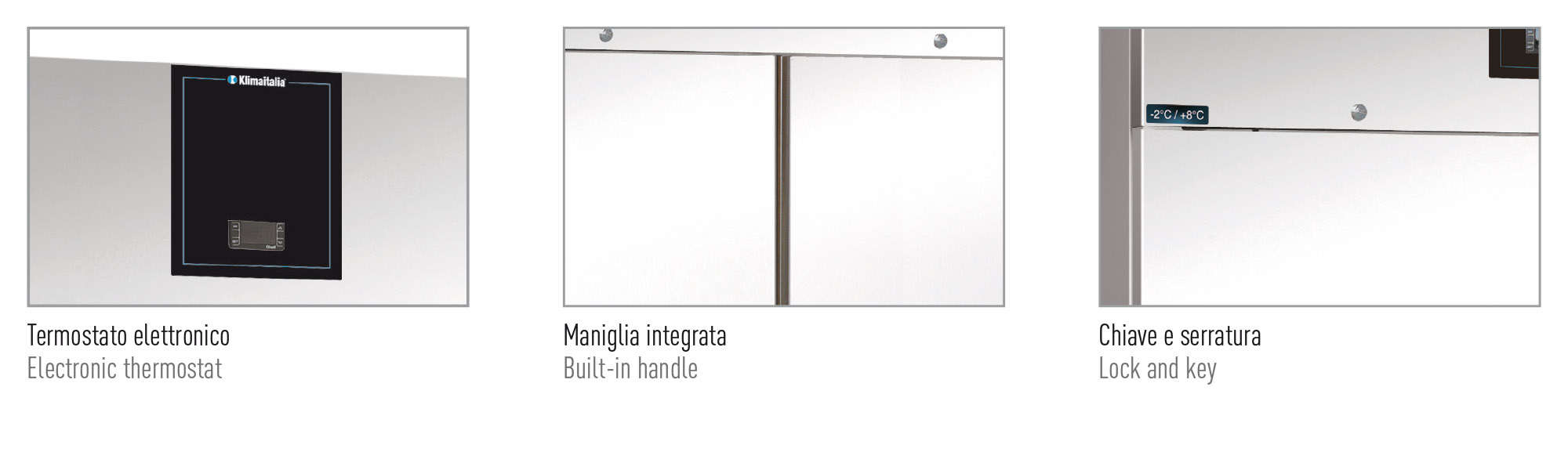

| Thermostat | Electronic | Electronic |
| Noise level | dB 44 | dB 46 |
| Remote controller | Optional | Optional |
| Insulation thickness | mm 73,5 | mm 73,5 |
| Defrost | Automatic with electric heater | Automatic with electric heater |
| Cooling system | Ceiling evaporator | Ceiling evaporator |
| Lighting | Led | Led |
| Self closing door | Soft closing | Soft closing |
| Lock and key | Yes | Yes |
| Reversible door | Yes | Yes |
| Shelves (WxD) | N° 3 – mm 531 x 650 + N° 1 – mm 510 x 605 | N° 3 – mm 531 x 650 + N° 1 – mm 510 x 605 |
| Castors-Feet | 4 Feet | 4 Feet |
| Castors | Optional – h mm 140 | Optional – h mm 140 |
| Net-Gross Weight | Kg 106 / 122 | Kg 111 / 127 |
| Voltage | V 220-240 | V 220-240 |
| Frequency | Hz 50 | Hz 50 |
| Refrigerant | R290 | R290 |
| Absorption | W 220 | W 480 |
| Energy Consumption | KwH/24H 1,070 | KwH/24H 3,870 |
